High Speed Slitting MachineHigh Speed Slitting Machine

High Speed Slitting Machine



Model: LFQ

Mob: 0086 13587581245
Tel: 0086-577-65518833
Fax: 0086-577-65518833
Email: sale@chinatplast.com

High Speed Slitting Machine



Model: LFQ
PRODUCT INFORMATION

1. Machine Introduction

Plastic Film Slitting Machine  is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE,

PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according

to different requirements during production.



2. Machine Advantages

1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.



3. Machine Parameters

<-------- Can Move Left or Right -------->

Type

LFQ700B

LFQ1100B

LFQ1300B

Max.Width of Mother Roll

700mm

1100mm

1300m

Max.Diameter of Mother Roll

φ 600mm

φ 600mm

φ 600mm

Width of Final Roll

50~700mm

50~1100mm

50~1300mm

Max.Diameter of Rewinding

φ 450mm

φ 450mm

φ 450mm

Internal Diameter of RollCore

76mm

76mm

76mm

Mechanical Speed

180m/min

180m/min

180m/min

Slitting and Rewinding Speed

160m/min

160m/min

160m/min

Tolerance of EPC

±0.5mm

±0.5mm

±0.5mm

Total Power

2.9Kw

3.7Kw

3.7Kw

Weigh t o f Machine

1300kg

1600kg

1900kg

Overall Dimension(L×W×H)

1570×2100×1500

1570×2500×1500

1570×2700×1500

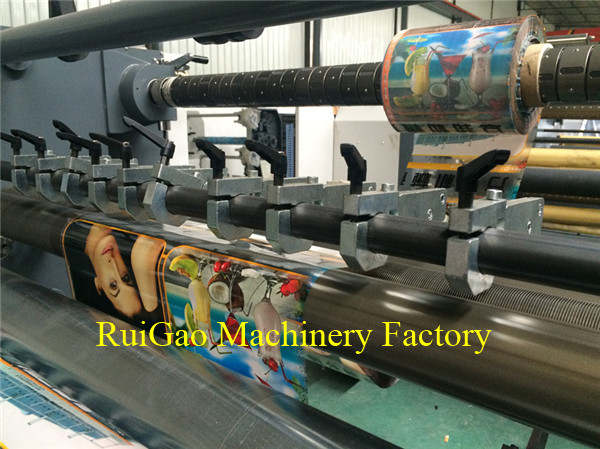

4. Machine Details


We are High Speed Slitting Machine suppliers/manufacturers from china factory . We also can produce the High Speed Slitting Machine according to the client’s requirement. We are always try our best to become the good High Speed Slitting Machine, Slitting Machine, Slitter Machine, paper slitting machine, roll slitting and rewinding machine, film slitting machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.
