FILM BLOWING MACHINE
Taiwan Quality Rotary Die Head Plastic Film Blowing MachineTaiwan Quality Rotary Die Head Plastic Film Blowing Machine

Taiwan Quality Rotary Die Head Plastic Film Blowing Machine



Model: SJ/HMC

Mob: 0086 13587581245
Tel: 0086-577-65518833
Fax: 0086-577-65518833
Email: sale@chinatplast.com

Taiwan Quality Rotary Die Head Plastic Film Blowing Machine



Model: SJ/HMC
PRODUCT INFORMATION

Taiwan Quality Rotary Die Head Plastic Film Blowing Machine use Taiwan same materials #42 steel and keep in oven for 7 days, So it is very hard. and it is bimetal materials So the life of screw is very longer.

And we use #42 steel for die head, the design is same to taiwan. So Taiwan Quality Rotary Die Head Plastic Film Blowing Machine can do bigger output of plastic film.

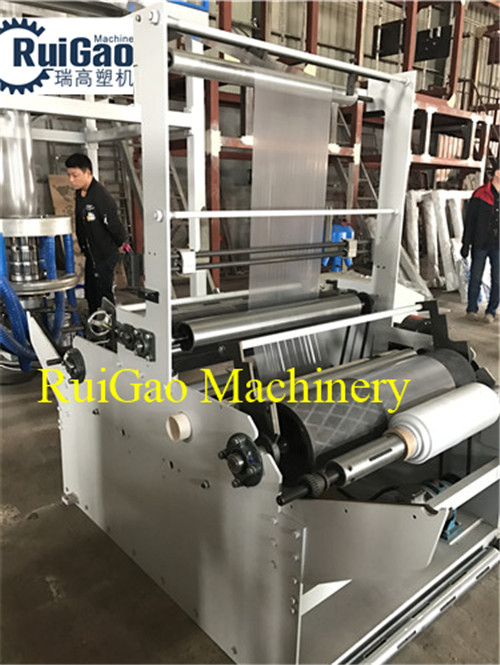

The rewinder is controlled by inverter and air shaft.



Main Technical Variables:



<-------- Can Move Left or Right -------->

 Model

SJ-50/HMC600

SJ-55/HMC800

SJ-60/HMC1000

SJ-65/HMC1200

 Screw Diameter (mm)

Φ50

Φ55

Φ60

Φ65

Screw Length (L/D)

30:1

30:1

30:1

30:1

 Film Width(mm)

200-600

200-800

300-1000

400-1200

 Film Thickness(mm)

0.006-0.10

0.006-0.10

0.006-0.10

0.006-0.10

 Max.Extrusion Output (kg/h)

60

70

80

90

 Die Size(mm)

Φ60/100

Φ80/150

Φ100/200

Φ120/250

 Cylinder Cooling (Kw)

0.13*2

0.13X2

0.13X3

0.13X3

 Driving Motor(kw)

15

18.5

22

30

Total power(kw)

28

36

42

52

 Cover Dimension(m)

5.0*2.6*4.5

5.0*3*4.6

5.5*3.5*4.8

5.5*4*5

Weight of Machine(kg)

2800kg

3000kg

3500kg

3800kg





We are Taiwan Quality Rotary Die Head Plastic Film Blowing Machine suppliers/manufacturers from china factory . We also can produce the Taiwan Quality Rotary Die Head Plastic Film Blowing Machine according to the client’s requirement. We are always try our best to become the good Taiwan Quality Rotary Die Head Plastic Film Blowing Machine, Rotary Die head Film blowing machine, plastic film blowing machine , Taiwan plastic film blowing machine, Nylon film blowing machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.
