FILM BLOWING MACHINE

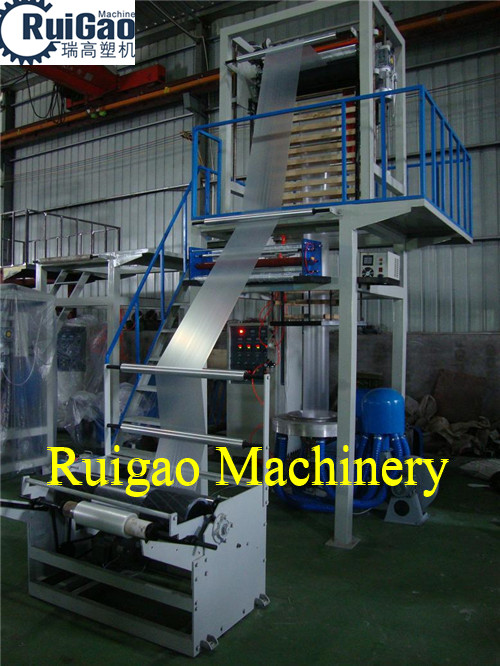

Chinese Quality High Speed Film Blowing MachineChinese Quality High Speed Film Blowing Machine

Chinese Quality High Speed Film Blowing Machine



Model: SJ-50/MB600

Mob: 0086 13587581245
Tel: 0086-577-65518833
Fax: 0086-577-65518833
Email: sale@chinatplast.com

Chinese Quality High Speed Film Blowing Machine



Model: SJ-50/MB600
PRODUCT INFORMATION

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding, So it is sound in hardness, durable in corrosion resistance.

The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Main Technical Variables:

<-------- Can Move Left or Right -------->

 Model

SJ-50/MB600

SJ-55/MB800

SJ-60/MB1000

SJ-65/MB1200

 Screw Diameter (mm)

Φ50

Φ55

Φ60

Φ65

Screw Length (L/D)

28:1

28:1

28:1

28:1

 Film Width(mm)

200-600

300-800

400-1000

600-1200

 Film Thickness(mm)

0.006-0.10

0.006-0.10

0.006-0.10

0.006-0.10

 Max.Extrusion Output (kg/h)

40

50

60

70

 Die Size(mm)

Φ60/100

Φ80/150

Φ100/200

Φ120/250

 Cylinder Cooling (Kw)

0.25

0.25X1

0.25X2

0.25X2

 Driving Motor(kw)

11

15

18.5

22

Total power(kw)

28

36

42

48

 Cover Dimension(m)

5.0*2.1*3.8

5.0*2.3*4

5.5*3.3*4.2

5.8*3.6*4.5

Weight of Machine(kg)

1800kg

2000

2300

2600

<-------- Can Move Left or Right -------->

<-------- Can Move Left or Right -------->

<-------- Can Move Left or Right -------->

<-------- Can Move Left or Right -------->

<-------- Can Move Left or Right -------->

<-------- Can Move Left or Right -------->

<-------- Can Move Left or Right -------->

We are committed to providing you with professional Chinese Quality High Speed Film Blowing Machine solutions! Guided by the international and domestic markets, we will continue to develop and expand the scale of the company, improve the quality of Chinese Quality High Speed Film Blowing Machine, high speed film blown machine, high speed film extruder machine, high speed film extruding machine, high speed film blowing machine, high speed plastic film blowing machine products, and establish a complete quality assurance system and production management system. We insist that the quality standard of each product must be higher than the industry level to ensure that the product reaches a unified standard and quality.
