FILM BLOWING MACHINE
Taiwan Quality ABA Film Blowing MachineTaiwan Quality ABA Film Blowing Machine

Taiwan Quality ABA Film Blowing Machine



Model: SJ-ABA

Mob: 0086 13587581245
Tel: 0086-577-65518833
Fax: 0086-577-65518833
Email: sale@chinatplast.com

Taiwan Quality ABA Film Blowing Machine



Model: SJ-ABA
PRODUCT INFORMATION

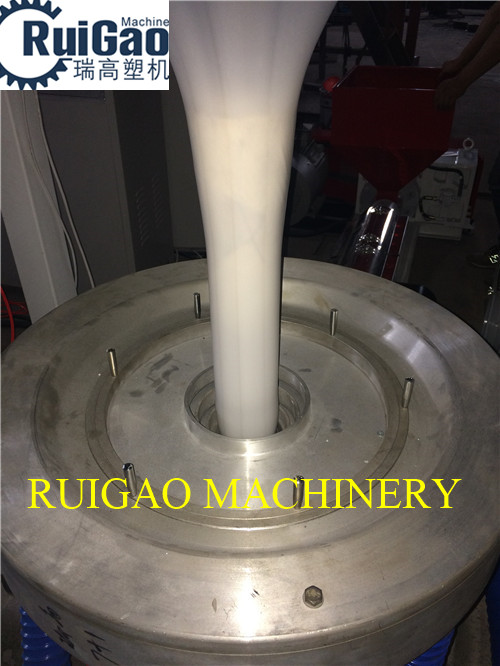

Taiwan Quality ABA Film Blowing Machine use Taiwan Screw and Barrel, bimetal materials, which is very suitable for Caco3 Filller.  and Taiwan Quality ABA Film Blowing Machine die head is use #42 steel, it is processing with Taiwan Processing Center and with hot treatment for 3 days.  So it is very hard and longer life.

Taiwan Quality ABA Film Blowing Machine can do HDPE, LDPE and LLDPE. It can save materials cost and make profit for you.



Taiwan Quality ABA film blowing machine Main Technical Variables:

<-------- Can Move Left or Right -------->

film blowing machine Model

SJ-50/ABA800

SJ--55/ABA1000

Screw Diameter (mm)

45/50

50/55

Screw Length (L/D)

30:1

30:1

Film Width(mm)

200-800

300-1000

Film Thickness(mm)

0.01-0.10

0.01-0.10

Max.Extrusion Output(kg/h)

80

100

 Cylinder Cooling (Kw)

0.13*2

0.13*2

 Driving Motor(kw)

11kw/15kw

15KW/18.5KW

 Temperature Control

3/3

3/4

 Average Power-consume(kw)

50kw

55kw

 Die Size(mm)

80/150

120/200

Winding Speed(m/min)

10-80

10-80

 Take-up Motor(kw)

1.5

1.5

Weight of machine(kg)

3000

3500

Cover Dimension(m)

4.2*3.3*4.5

4.6*3.6*4.8

<-------- Can Move Left or Right -------->
film blowing machine

<-------- Can Move Left or Right -------->
film blowing machine

<-------- Can Move Left or Right -------->
film blowing machine



We are Taiwan Quality ABA Film Blowing Machine suppliers/manufacturers from china factory . We also can produce the Taiwan Quality ABA Film Blowing Machine according to the client’s requirement. We are always try our best to become the good Taiwan Quality ABA Film Blowing Machine, ABA Film blowing machine, ABA film blown machine, ABA film extruder machine, ABA film extruding machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.
