Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration
and precision finishing with the best hardness and corrosion resistance.,Scientifically designed,
this machine set has two heads for one extruder with such advantages as increasing production
capacity,saving energy,labour and workshop area,etc.
Model | SJ-50*3/MD1000 | SJ-55*3/MD1200 | SJ-60*3/MD1500 | SJ-70*3/MD1700 |
Screw Diameter(mm) | 45/50/45 | 50 /55/50 | 55/60/55 | 60 /70/60 |
Screw Ratio(L/D) | 30:1 | 30:1 | 30:1 | 30:1 |
Screw Speed(r/min) | 110 | 110 | 110 | 110 |

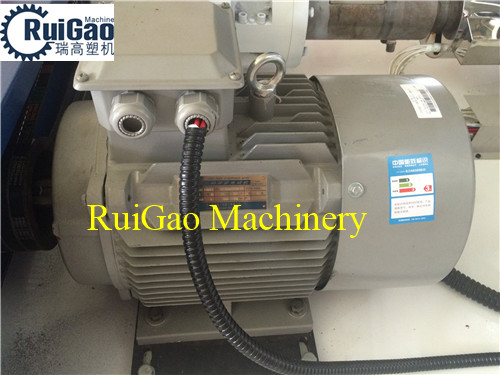

Power of Main Motor(kw) | 11/15/11 | 11/18.5/11 | 15/22/15 | 22/30/22 |

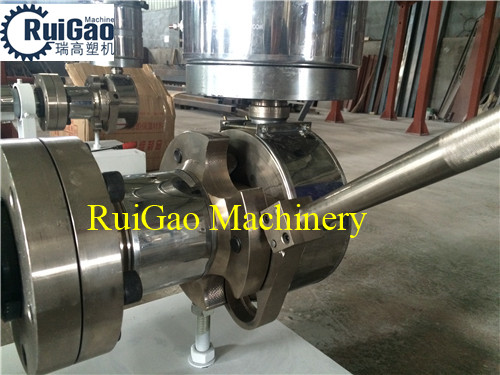

Range of Die(mm) | ¢250 | ¢300 | ¢350 | ¢450 |
single-sided Thickness of Film(mm) | 0.02-0.15 | 0.02-0.15 | 0.03-0.15 | 0.05-0.20 |
Max.Folding Width of Film(mm) | 1000 | 1200 | 1500 | 1700 |
Electric Total Capacity(kw) | 66 | 75 | 86 | 102 |
Weight of Machine(kg) | 4200 | 5300 | 6200 | 7400 |
Overall Dimensions (L*W*H)(m) | 6.6*2.8*5 | 6.8*3*6 | 7*3.2*6.8 | 7.3*4*8 |
